Introducing

The Universal IEEE 802.15.4 Sensor for WSN and IoT applications

"After using several developing boards, we needed a more complete and versatile solution, small, flexible but still simple and cost-effective..."

Model S2 based on Atmel AtMega256RFR2 is a proven and robust design.

Built on high quality components and used in several projects and courses.

Contiki support for the platform (avr-rss2)

General features

MCU AtMega256RFR2 with integrated IEEE 802.15.4 Transceiver
Integrated high-performance PCB antenna. Supercardiod
USB connection via USB-TTL cable
Low-Power consumption SLEEP ~15 uA @ 8MHz (RC Osc.)
Low-Power consumption SLEEP ~45 uA @ 16MHz (XTAL)
Low-Power voltage regulator with wide input range 3.5V-25V. TVS protected
On-board Temperature/Realative Humidity/Pressure. Bosch BME280
On-board chip unique EUI-64/128 bit ID plus EEPROM
2 Analog inputs. ADC1/AD1, (ADC2/AD2 Pin Header)
1 Analog input to voltage regulator. CON_BAT/V_IN
1 GPIO/pulse pin. w. pull-up. P0
1 Programmable power pin Vcc. via FET for external sensor
1 GPIO with connector intended for one-wire bus
2 LED's Red/Yellow for monitoring and debugging
Header for extra one-wire temp. sensor via cable
Programmable via AVR 6-Pin (0.1"") ISP or via USB/serial bootloader

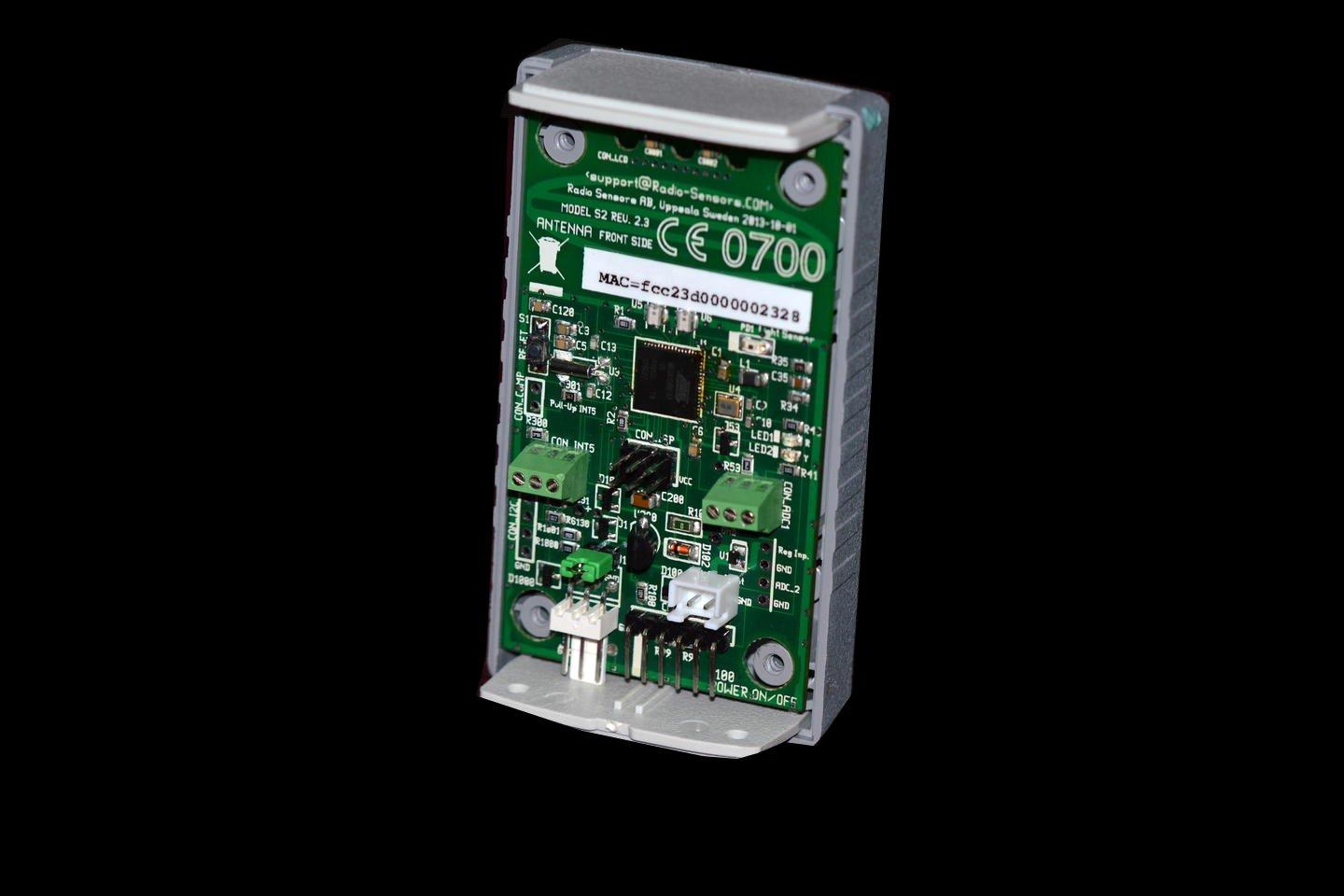

Compact size. PCB 80x45.5 mm. Case 90x50x32 mm standard case
Weight 20 gr without battery and holder including standard case 70 gr
On-board comparator typical use w. phototrans. P1
On-board light sensor

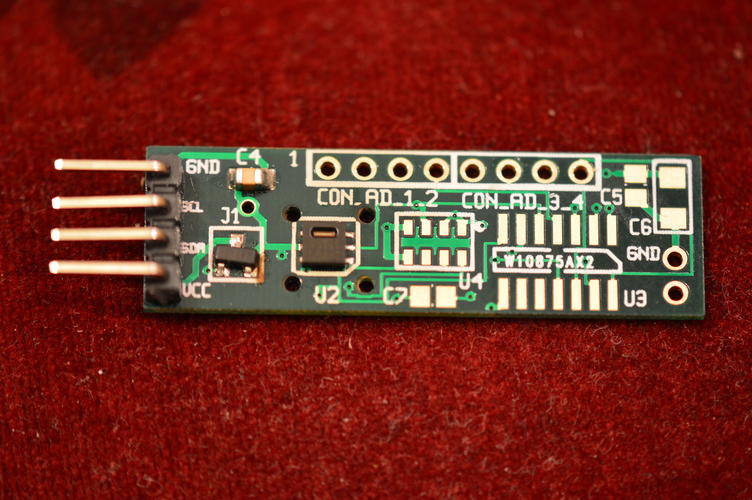

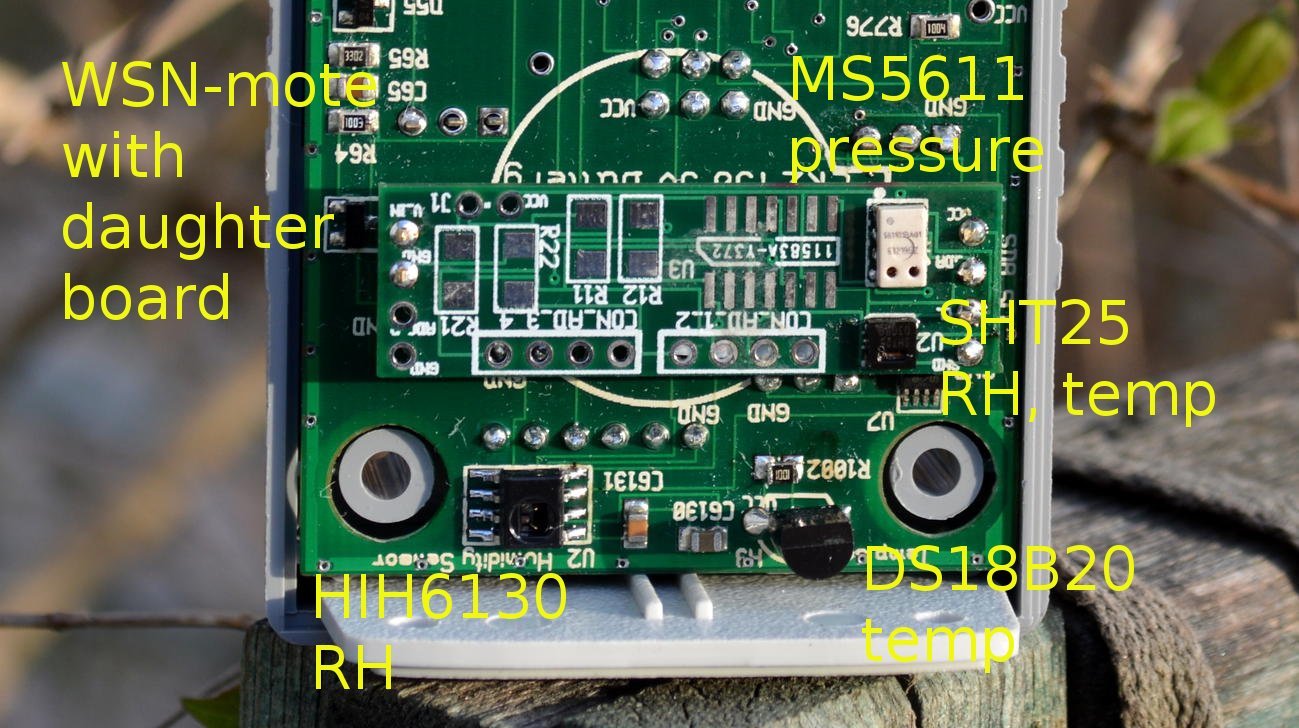

Headers for I2C addiional sensors/modules
Software
Officially supported platform BOARD=avr-rss2 in RIOT. (open source)
Officially supported platform TARGET=avr-rss2 in Contiki. (open source)
Approvals
Summary: CE approved Radio Equipment Directive (RED) 2014/53/EU
Safety: IEC 60950-1:2005 2nd Edition +Am 1:2009 +Am 2:2013
RF: ETSI EN 300 328 V2.1.1 (2016-11)
EMC: Draft ETSI EN 301 489-1 V2.2.0 (2017-03), Draft ETSI EN 301 489-17 V3.2.0 (2017-03)
EMF: EN 62479:2010
Human exposure to electromagnetic fields: EN 62479:2010
Enclosure
PCB format standard Project box. G.40X IP54

S2 PCB documentation and board anatomi
User's HW guide

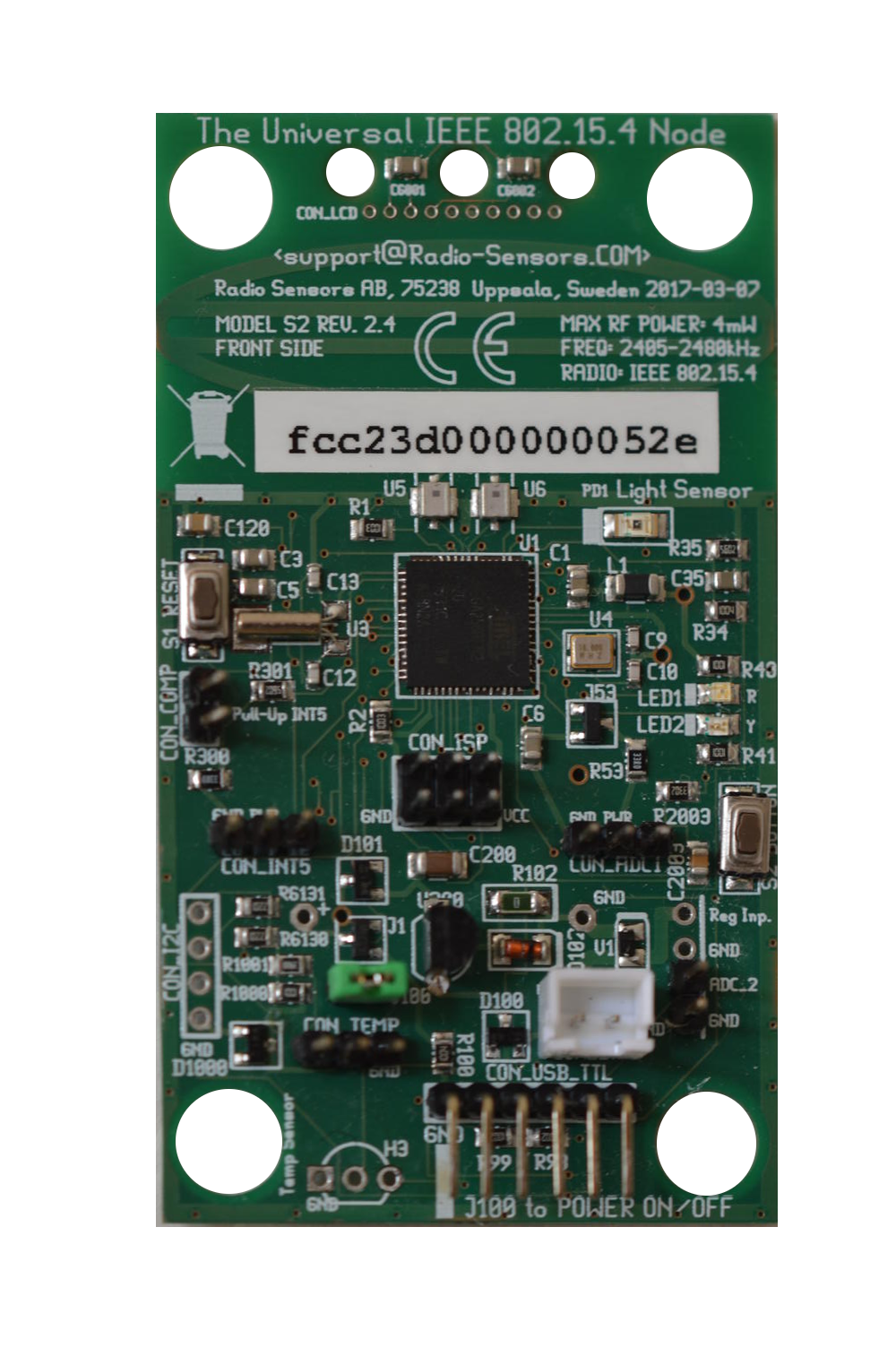

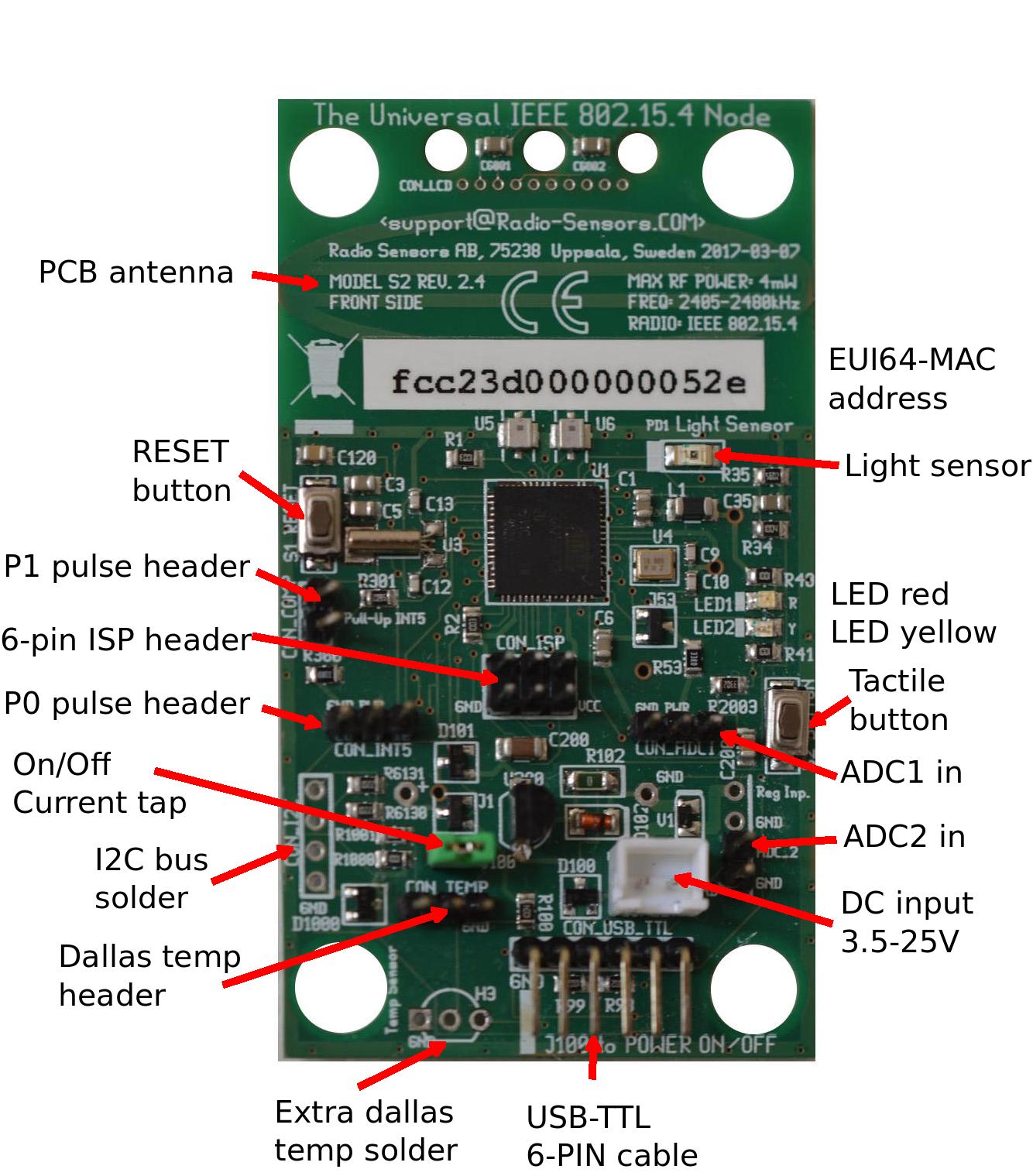

Front side: Connector and pins etc

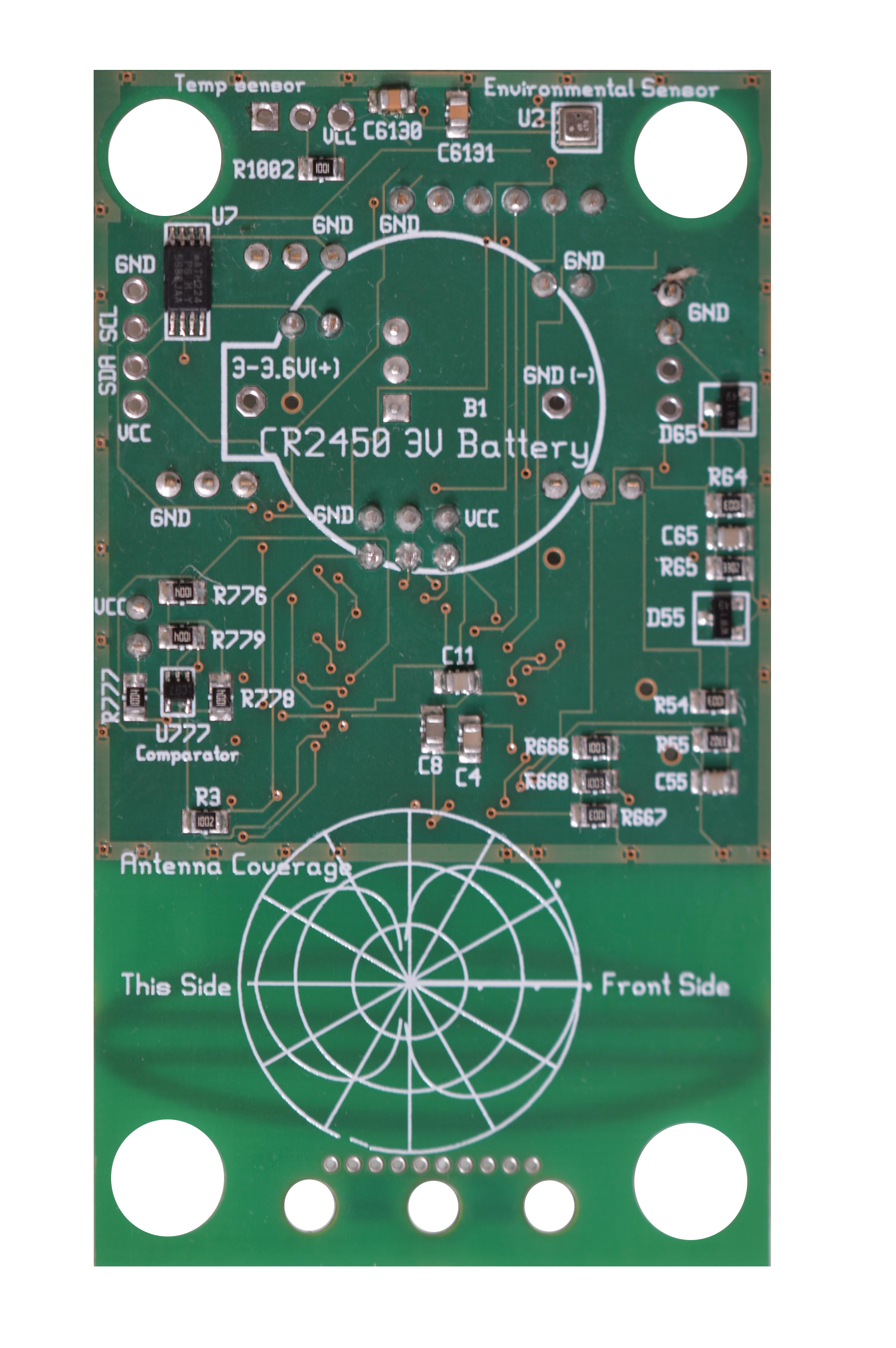

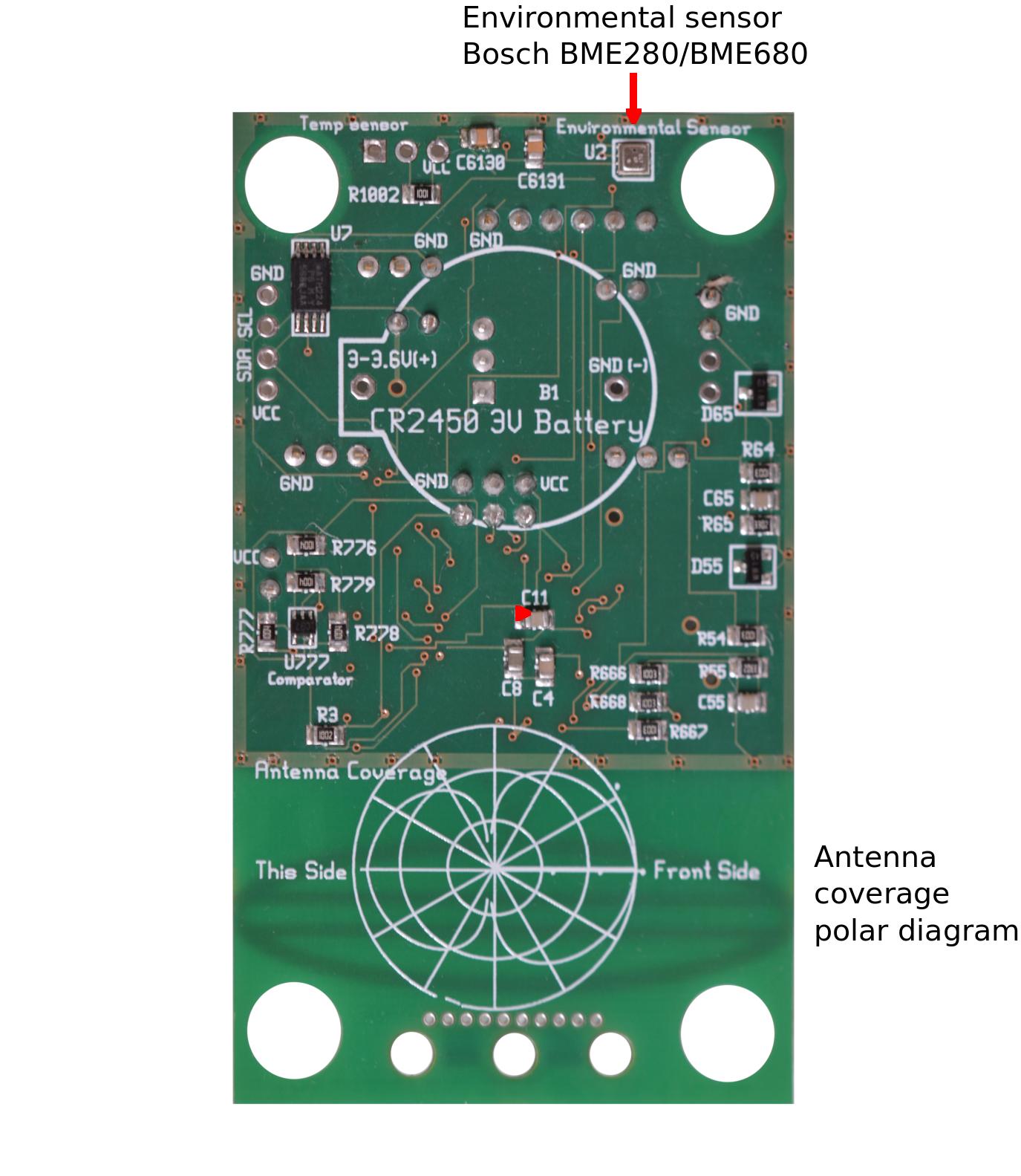

Back side: Sensors etc
Other Information
WSN practical guide
HOWTO's
Development & programming information
RIOT-OS (See board avr-rss2)
Contiki OS (See platform avr-rss2)
Electronic circuit diagram and C-header definitions file available

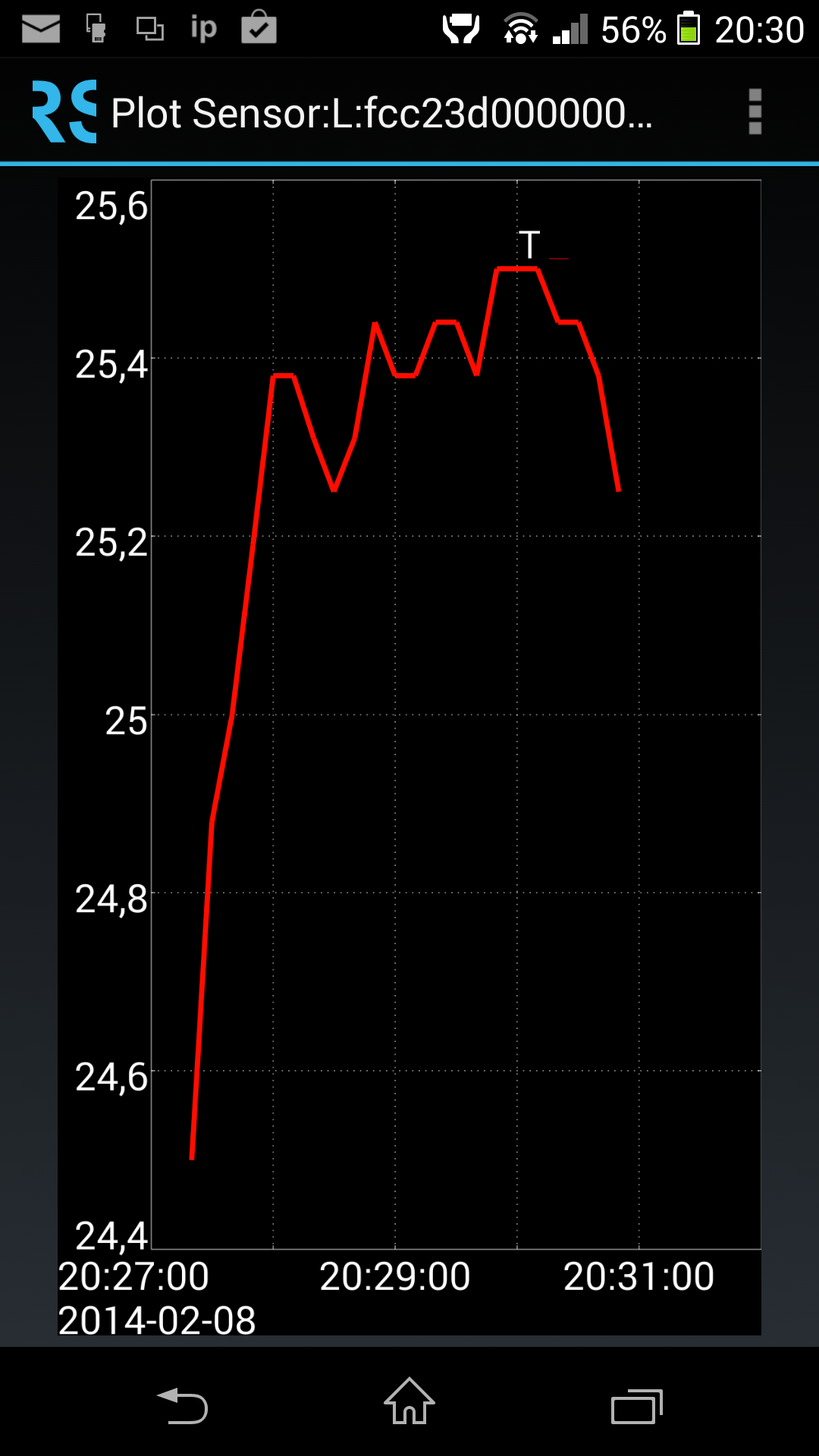

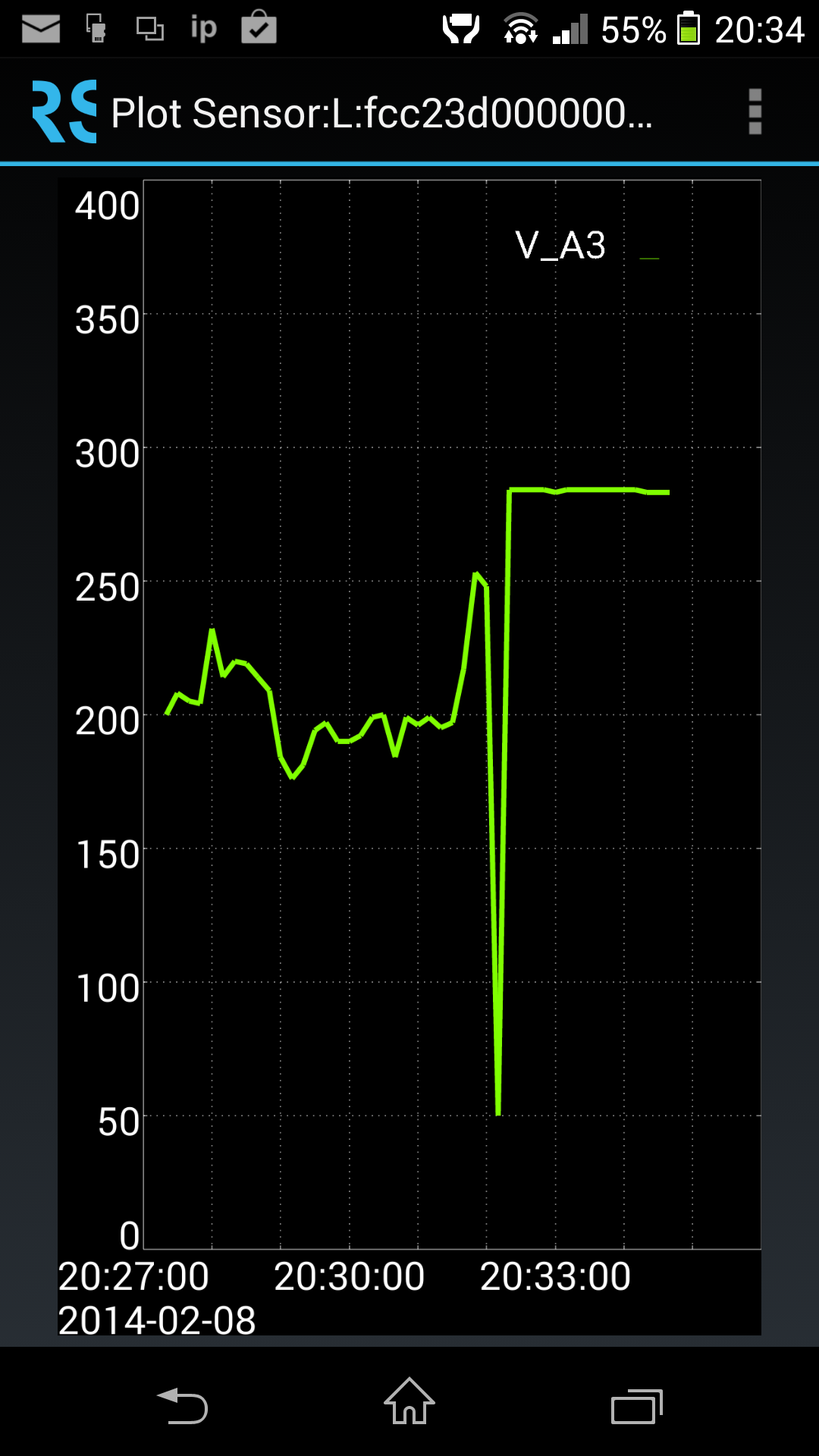

Read Sensors an open source Android app. @ github
sensd an open source WSN gateway & daemon @ github
